Breite des Sensors | 31 mm |
Höhe des Sensors | 33 mm |
Länge des Sensors | 75,7 mm |
Bemessungsbetriebsstrom Ie bei AC-15, 24 V | 6 A |
Bemessungsbetriebsstrom Ie bei DC-13, 24 V | 3 A |
Bemessungsbetriebsstrom Ie bei DC-13, 125 V | 0,55 A |
Schaltfunktion | Sprungschaltglied |
Schaltfunktion verrastend | false |
Zwangsöffnung | true |
Anzahl der sicherheitsgerichteten Hilfskontakte | 1 |
Anzahl der Kontakte als Öffner | 1 |
Anzahl der Kontakte als Schließer | 1 |
Anzahl der Kontakte als Wechsler | 0 |
Ausführung der Schnittstelle | ohne |
Ausführung der Schnittstelle für sicherheitsgerichtete Kommunikation | ohne |
Gehäusebauform | Quader |
Werkstoff des Gehäuses | Kunststoff |
Beschichtung Gehäuse | sonstige |
Ausrichtung des Betätigungselements | Rollenstößel gerade |
Mit Statusanzeige | false |
Geeignet für Sicherheitsfunktionen | true |
Explosionsschutz-Kategorie für Gas | ohne |
Explosionsschutz-Kategorie für Staub | ohne |
Umgebungstemperatur während des Betriebs | -25 - 85 €C |
Schutzart (IP) | IP65 |
Schutzart (NEMA) | 12 |

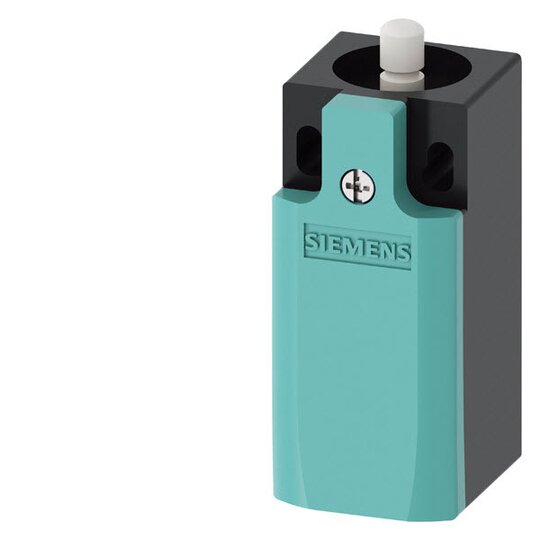

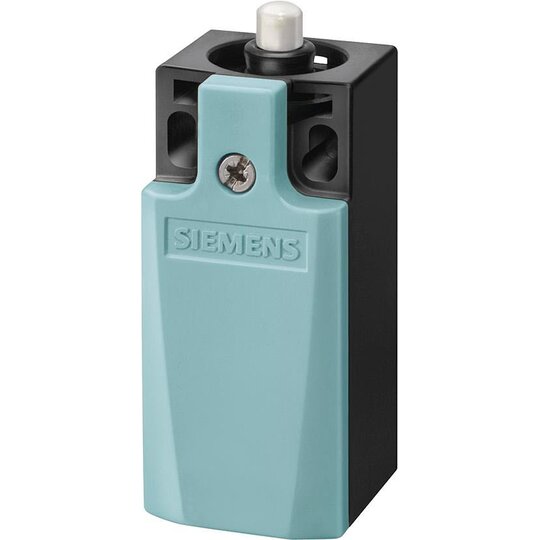

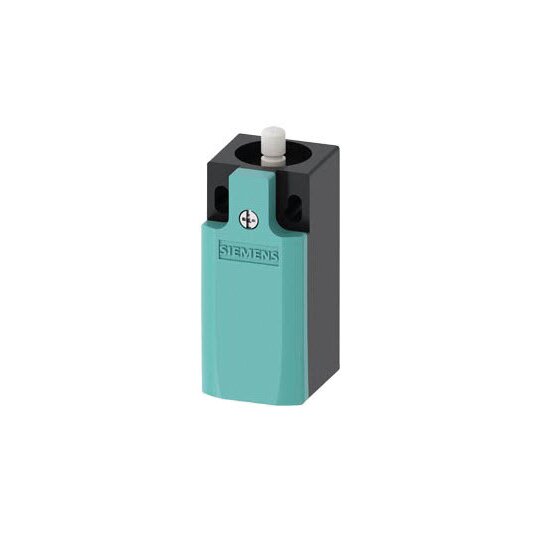

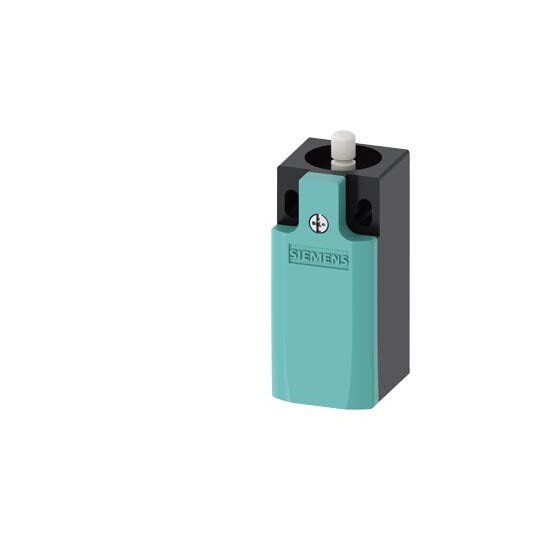

Mechanische Positionsschalter SIRIUS 3SE5 zur Positions- und Lageerfassung von Maschinenteilen und Stellungsüberwachung von Schutzeinrichtungen.
