Breite des Sensors | 56 mm |
Höhe des Sensors | 37,8 mm |
Länge des Sensors | 85,7 mm |
Bemessungsbetriebsstrom Ie bei AC-15, 230 V | 6 A |
Schaltfunktion | Sprungschaltglied |
Schaltfunktion verrastend | false |
Zwangsöffnung | true |
Anzahl der sicherheitsgerichteten Hilfskontakte | 2 |
Anzahl der Kontakte als Öffner | 2 |
Anzahl der Kontakte als Schließer | 1 |
Anzahl der Kontakte als Wechsler | 0 |
Ausführung der Schnittstelle | ohne |
Ausführung der Schnittstelle für sicherheitsgerichtete Kommunikation | ohne |
Gehäusebauform | Quader |
Werkstoff des Gehäuses | Metall |
Beschichtung Gehäuse | lackiert |
Ausrichtung des Betätigungselements | Rollenstößel gerade |
Mit Statusanzeige | true |
Geeignet für Sicherheitsfunktionen | true |
Explosionsschutz-Kategorie für Gas | ohne |
Explosionsschutz-Kategorie für Staub | ohne |
Umgebungstemperatur während des Betriebs | -25 - 60 €C |
Schutzart (IP) | IP66/IP67 |
Schutzart (NEMA) | 12 |

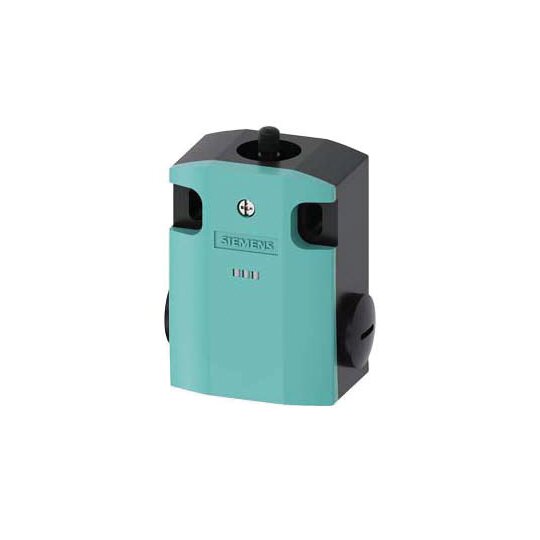

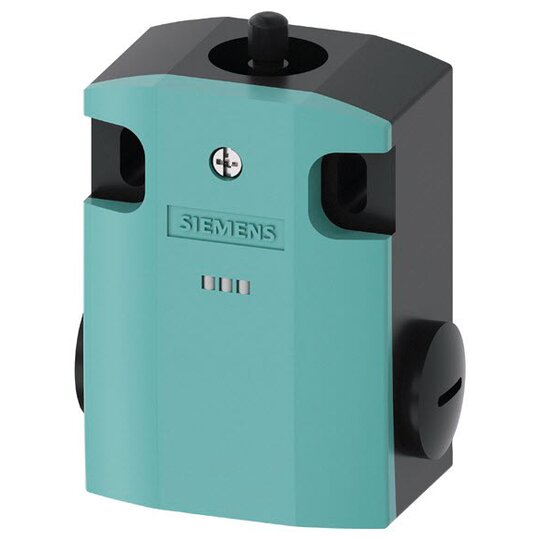

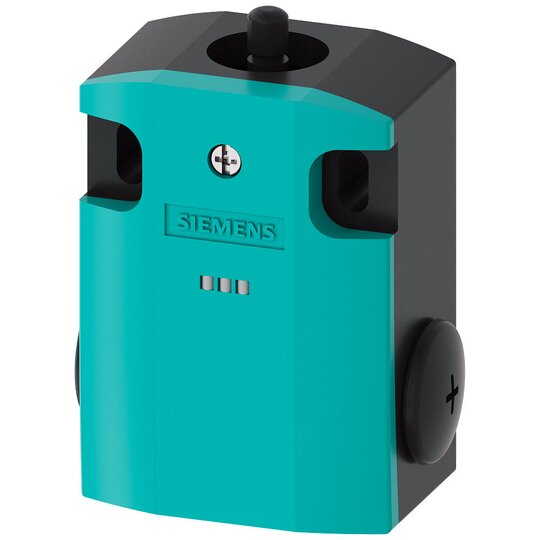

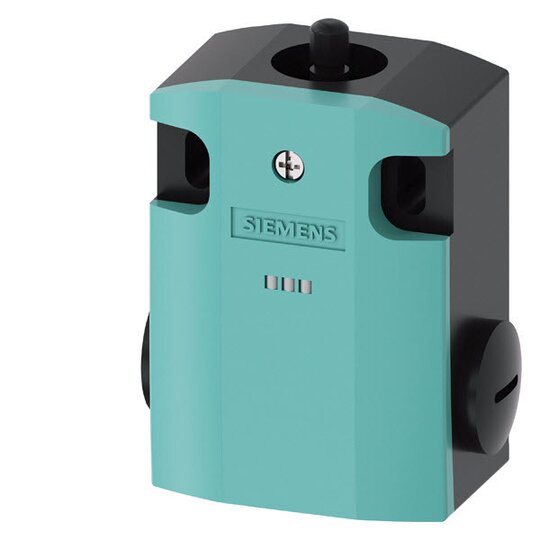

Der Basisschalter dient der Positions- und Lageerfassung von Maschinenteilen sowie der Stellungsüberwachung von Schutzeinrichtungen.
