Thorn VOYAGER STAR MSC E1/3 S WH Notlichtleuchte 96638094

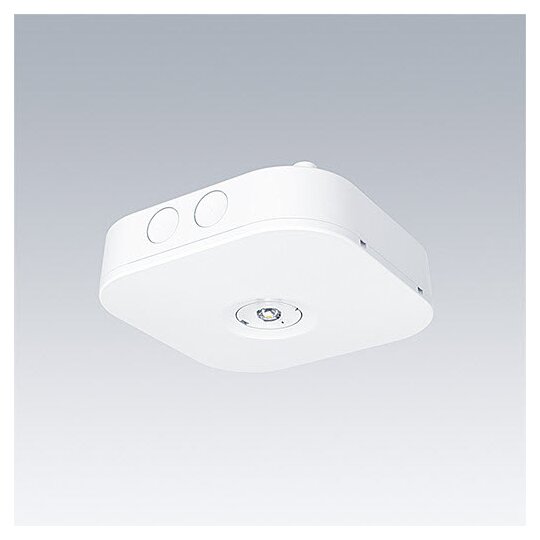

LED safety luminaire for surface ceiling mounting. Optics rotatable and fixable in 45° steps. Supplied with a set of changeable optics ESC (escape route), ANT (antipanic) and HC (high ceiling). Housing made of polycarbonate (PC) white. Quick fit terminal block, through wiring possible up to 2,5 mm². Self contained luminaire with integrated LiFePo4 battery pack, emergency operation time selectable via jumper for 1h or 3h (default). Maintained or non-maintained (default) operation possible. Manual test, luminaire status display via status LED. Luminaire input power non-maintained with battery charging: 2,2W, power factor 0,43, with loaded battery 0,1W, power factor 0,06 Luminaire input power maintained with battery charging: 4,2W, power factor 0,52, with loaded battery 2,2W, Power factor 0,45 Vin: 220/240V AC +/-10%, 50/60Hz Degree of protection: IP42 Ta=0°C to +40°C Impact strength: IK04 Weight: 0.46 kg Class II electrical Warranty: The robust, integrated LiFePo4 battery comes with a three-year guarantee (applicable subject to the terms and conditions of and to the extent as set forth in the manufacturer's guarantee on Thorn products, which shall be applicable analogously and which is available under http://www.thornlighting.com/en/products/5-yeargu rantee/5-year-warranty/terms-of-guarantee_en.pdf. The battery guarantee shall not come into effect if the product has been installed later than three(3) months after delivery EXW (Incoterms 2010). Spare Parts: 59013930 VOYAGER STAR E1/3 CONVERTER 59013928 VOYAGER STAR ACCU LiFePo4 1/3h - 59013940 VOYAGER STAR LENSES SET ANT/ESC/SPOT WH
