Montageart | Aufbau/Einbau |
Leuchtmittel | LED nicht austauschbar |
Mit Leuchtmittel | false |
Geeignet für Leuchtmittelanzahl | 1 |
Fassung | ohne |
Spannungsart | AC |
Nennspannung | 180 - 264 V |
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015 | nicht erforderlich |
Bemessungslebensdauer L70/B50 bei 25 €C | 100000 h |
Lichtstromerhalt bei mittl. Nutzungsdauer 50.000 h bei 25 €C Umgebungstemp. | 90 % |
Konstant-Lichtstrom-Regelung | false |
Schutzart (IP) | IP65 |
Schlagfestigkeit | IK03 |
Schutzklasse | II |
Leuchte mit begrenzter Oberflächentemperatur "D-Zeichen" | false |
Max. Systemleistung | 2,4 W |
Bemessungslichtstrom nach IEC 62722-2-1 | 296 lm |
Farbtemperatur | 6500 - 6500 K |
Leistungsfaktor | 1 |
Breite | 54 mm |
Höhe/Tiefe | 59 mm |
Länge | 336 mm |
Art der Verdrahtung | geeignet für Durchgangsverdrahtung |
Leiterquerschnitt | 1,5 qmm |
Anschlussart | sonstige |

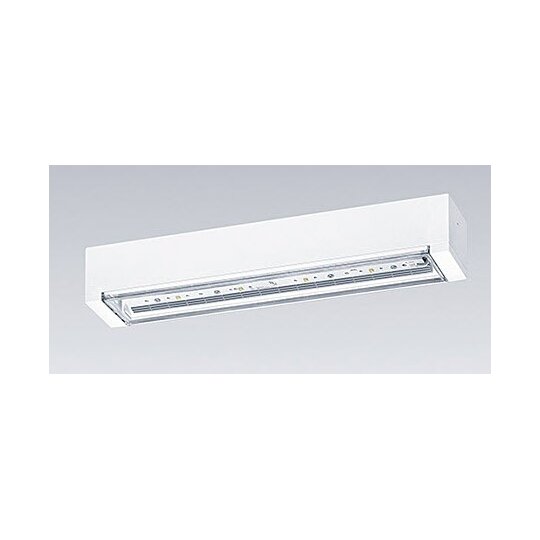

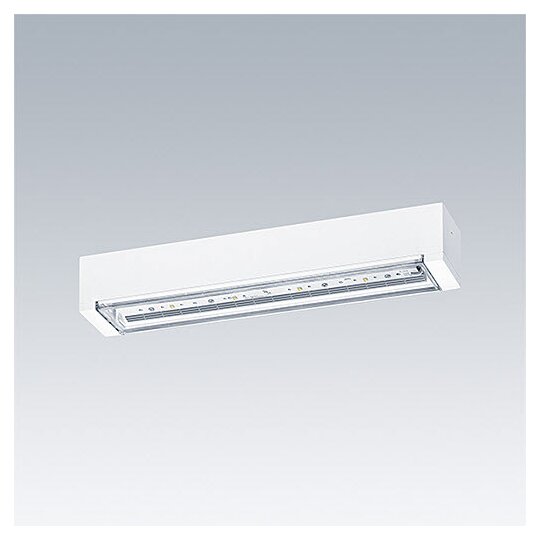

Slim IP65 LED emergency lighting luminaire for surface, wall or ceiling mounting, Click adapter for wall surface mounting within scope of delivery, recessed ceiling mounting possible with optional recessed ceiling frame, Luminaire for central emergency power supply with 48V DC, for single monitoring of the luminaire via Powerline in connection with the nBox System, settable emergency light level, non-maintained and maintained mode possible, , Cable length from emergency power source to last luminaire: 200 m, additional click-optics optimised for escape routes and open areas from higher mounting heights available, Click in legends for viewing from a maximum distance of 23 m and 30 m available to convert to escape sign luminaire, housing made of polycarbonate white, cover mode of transparent polycarbonate, Tool-less 'click' mounting after fitting the housing base, Quick fit terminal block, through wiring possible up to 2,5 mm², zero maintenance thanks to LED technology, service life of 50,000 h at constant luminous flux, Luminaire input power: 2.4 W, degree of protection: IP65, class of protection: SC2, Impact strength: IK03, Dimensions: 336 x 54 x 59 mm, weight: 0.56 kg
3D / BIM Objekt
Download
(Stand: 25.07.2025)
|
DOC CE-Erklärung
Download
(Stand: 25.07.2025)
|
Deeplink Produktseite
Download
(Stand: 25.07.2025)
|
Lichtverteilungskurve
Download
(Stand: 25.07.2025)
|
Montageanleitung
Download
(Stand: 25.07.2025)
|
Produktdatenblatt
Download
(Stand: 25.07.2025)
|
RoHS-Erklärung
Download
(Stand: 25.07.2025)
|
Verkaufsprospekt
Download
(Stand: 25.07.2025)
|
3 / 311 / 31101 / 3110100 (328315152)
