Montageart | Aufbau/Einbau |
Leuchtmittel | LED nicht austauschbar |
Mit Leuchtmittel | false |
Geeignet für Leuchtmittelanzahl | 1 |
Fassung | ohne |
Spannungsart | AC |
Nennspannung | 180 - 264 V |
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015 | nicht erforderlich |
Bemessungslebensdauer L70/B50 bei 25 €C | 100000 h |
Lichtstromerhalt bei mittl. Nutzungsdauer 50.000 h bei 25 €C Umgebungstemp. | 90 % |
Konstant-Lichtstrom-Regelung | false |
Schutzart (IP) | IP20 |
Schlagfestigkeit | IK03 |
Schutzklasse | II |
Leuchte mit begrenzter Oberflächentemperatur "D-Zeichen" | false |
Max. Systemleistung | 2,4 W |
Bemessungslichtstrom nach IEC 62722-2-1 | 296 lm |
Farbtemperatur | 6500 - 6500 K |
Leistungsfaktor | 1 |
Breite | 59 mm |
Höhe/Tiefe | 158 mm |
Länge | 336 mm |
Art der Verdrahtung | Abschluss |
Leiterquerschnitt | 2,5 qmm |
Anschlussart | sonstige |

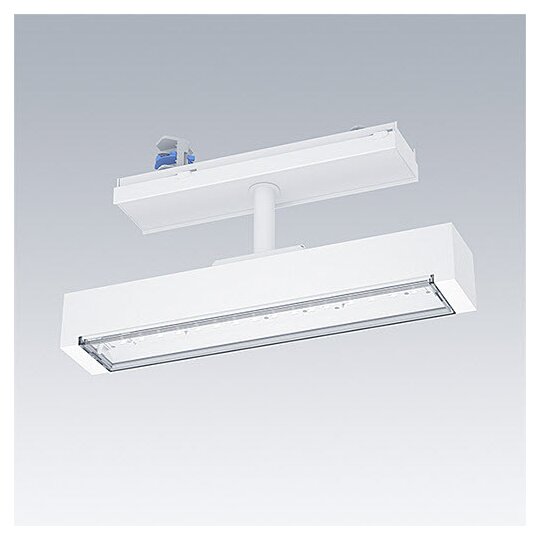

Slim IP20 LED emergency lighting luminaire, Luminaire for central emergency power supply with 48V DC, for single monitoring of the luminaire via Powerline in connection with the nBox System, settable emergency light level, non-maintained and maintained mode possible, , Cable length from emergency power source to last luminaire: 200 m, additional click-optics optimised for escape routes and open areas from higher mounting heights available, Click in legends for viewing from a maximum distance of 23 m and 30 m available to convert to escape sign luminaire, housing made of polycarbonate white, cover mode of transparent polycarbonate, Tool-less 'click' mounting, zero maintenance thanks to LED technology, service life of 50,000 h at constant luminous flux, Luminaire input power: 2.4 W, IP20, class of protection: SC2, Impact strength: IK03, Dimensions: 336 x 59 x 158 mm, weight: 0.51 kg
