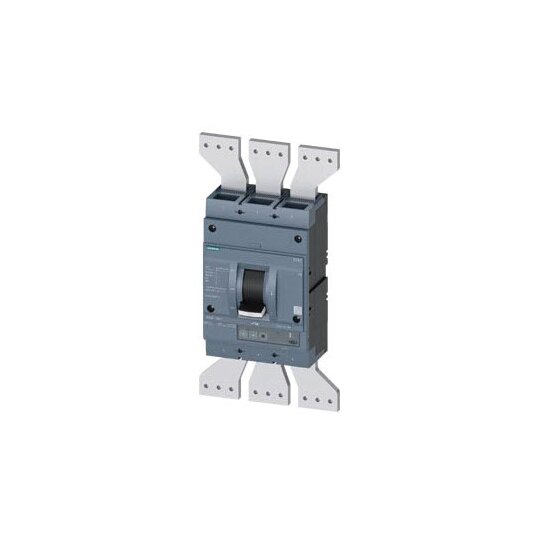

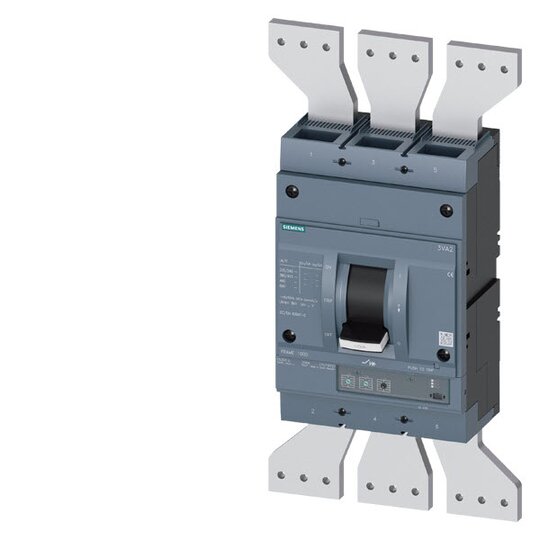

Bemessungsdauerstrom Iu | 1250 A |
Bemessungsspannung | 690 - 690 V |
Bemessungsgrenzkurzschlussausschaltstrom Icu bei 400 V, 50 Hz | 55 kA |
Überlastauslöser Stromeinstellung | 500 - 1250 A |
Einstellbereich des unverzögerten Kurzschlussauslösers | 1875 - 12500 A |
Integrierter Erdschlussschutz | false |
Gerätebauart | Einbaugerät Festeinbautechnik |
Geeignet für Hutschienenmontage | false |
Hutschienenmontage optional | false |
Anzahl der Hilfskontakte als Öffner | 0 |
Anzahl der Hilfskontakte als Schließer | 0 |
Anzahl der Hilfskontakte als Wechsler | 0 |
Mit Ausgelöstmelder | false |
Mit integriertem Unterspannungsauslöser | false |
Polzahl | 3 |
Ausführung des Betätigungselements | Kipphebel |
Komplettgerät mit Schutzeinheit | true |
Motorantrieb integriert | false |
Motorantrieb optional | false |
Schutzart (IP) | IP40 |
