Ausführung | Stufenschalter |
Polzahl | 1 |
Mit Nullstellung | true |
Mit Rückzug in Nullstellung | false |
Bemessungsdauerstrom Iu | 10 A |
Bemessungsbetriebsstrom Ie bei AC-3, 400 V | 2 A |
Schutzart (IP), frontseitig | IP65/IP67 |
NEMA-Schutzart, frontseitig | sonstige |
Anzahl der Hilfskontakte als Öffner | 0 |
Anzahl der Hilfskontakte als Schließer | 0 |
Anzahl der Hilfskontakte als Wechsler | 0 |
Geeignet für Bodenbefestigung | false |
Geeignet für Frontbefestigung | true |
Geeignet für Verteilereinbau | false |
Geeignet für Zwischenbau | true |
Komplettgerät im Gehäuse | true |
Werkstoff des Gehäuses | sonstige |
Ausführung des Betätigungselements | langer Drehgriff |
Anschlussart Hauptstromkreis | Schraubanschluss |

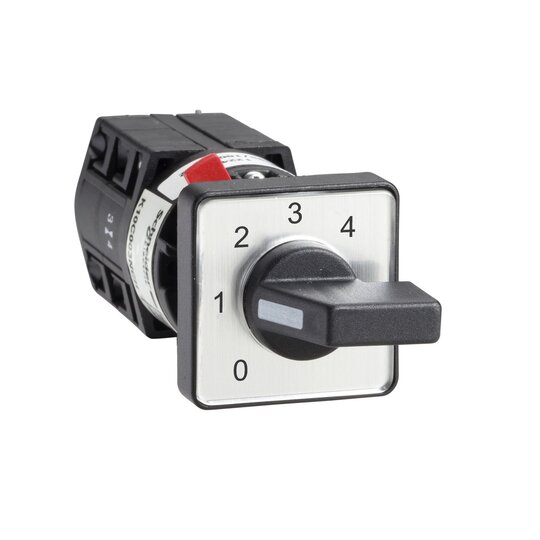

Stufenschalter, 1p, 30°, 10A, für Nockenschalter Ø 16 oder 22mm. Produktbereich: Harmony K - Komponentenname: K10 - knv. off. therm. Strom Ith: 10 A - Produktmontage: Frontmontage - Verriegelung des Drehgriffs: ohne - Funktion des Nockenschalters: Schrittschalter - Rückgabe: ohne - Beschreibung der Pole: 1P - Schaltpositionen: rechts: 270° - 300° - 330° - 0° - 30° - Schutzart IP: IP20 (Kontaktblock), IP65 (Antriebskopf) gemäß IEC 60529. Nockenschalter mit Durchmesser 16-22mm. Die für die Industrie konzipierten Nockenschalter verbinden einfache Montage mit großer Flexibilität und robuster Ausführung.
