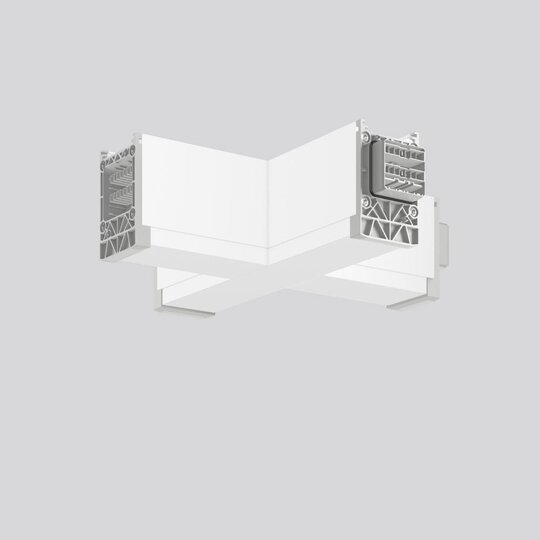

RZB 982775.012 Formverbinder, X-Verbinder L 330 B 330 H 87 Farbe: ws

Hersteller-Nr. 982775.012 289995144
Ihr Nettopreis
Art.-Nr.
7240015
EAN
4068754048095
DEHA.-Nr.
7332226
eClass.-Nr.
27111121
Zolltarif-Nr.
85369010
Verfügbarkeit am Fremdlager
wird ermittelt

Verfügbarkeit beim Hersteller anfragen
Farbe weiß

X-Verbinder für Module mit hohem opalen Diffusor. 14-polig, Anschluss Stecker / Buchse / Stecker / Buchse. Gehäuse Aluminium-Strangpressprofil pulverbeschichtet. Abdeckung Kunststoff in Gehäusefarbe. LINEDO Steckersystem aus Kunststoff hellgrau. Komfortabler Anschluss für starre und flexible Leitungen. 6 Membran-Leitungseinführungen (2 x M20 und 4 x M25). Geeignet zur Einspeisung bei 7-poliger Ausführung. Fertig vorverdrahtet. Durch farbig gekennzeichnete Einzelleitungen ist eine elektromechanische Trennung leicht möglich.

3D / BIM Objekt

Download (Stand: 07.06.2025)

DOC CE-Erklärung

Download (Stand: 07.06.2025)

Deeplink Produktseite

Download (Stand: 07.06.2025)

Logo 1c

Download (Stand: 07.06.2025)

Maßzeichnung

Download (Stand: 07.06.2025)

Montageanleitung

Download (Stand: 07.06.2025)

Produktdatenblatt

Download (Stand: 07.06.2025)

Sonstige

Download (Stand: 07.06.2025)

Sonstige

Download (Stand: 07.06.2025)

Spezifikationstext

Download (Stand: 07.06.2025)

Strichzeichnung

Download (Stand: 07.06.2025)
