Ausführung der Schnittstelle für sicherheitsgerichtete Kommunikation | sonstige |
Ausführung des Schaltausgangs des OSSD | sonstige |
Ausführung des elektrischen Anschlusses | Kabel |
Breite des Sensors | 12 mm |
Länge des Sensors | 660 mm |
Explosionsschutz-Kategorie für Gas | sonstige |
Explosionsschutz-Kategorie für Staub | sonstige |
Umgebungstemperatur | -10 - 45 €C |
Auflösung des Lichtvorhangs | 12,5 mm |
Reichweite des Schutzfeldes | 4000 m |
Schutzfeldhöhe | 488 mm |
Bemessungssteuerspeisespannung Us bei AC 60 Hz | 20.4 - 28.8 V |
Bemessungssteuerspeisespannung Us bei DC | 20.4 - 28.8 V |
Spannungsart | DC |
Wellenlänge des Sensors | 880 nm |
Geeignet für Sicherheitsfunktionen | false |
Schutzart (IP) | IP54 |
Schutzart (NEMA) | sonstige |

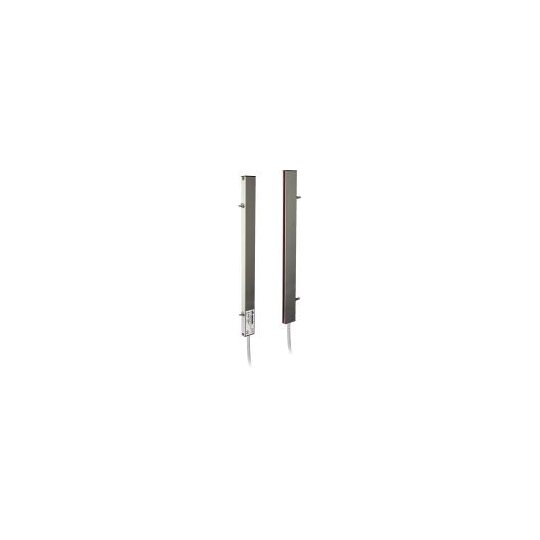

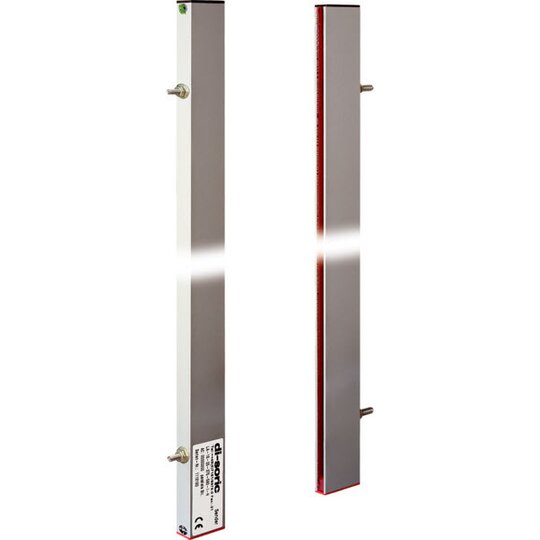

Lichtgitter Auswertung: horizontal Strahlabstand: 12,5ámm Strahlanzahl: 40 Überwachungshöhe: 488ámm Profillänge: 660ámm Profilquerschnitt: 12 x 24 mm Sendelichtquelle: LED Lichtfarbe: Infrarot / 880ánm Reichweite: 700ámm à 4.000ámm (werkseitig voreingestellt) Betriebsspannung: 20,4 à 28,8áV DC Schaltausgang: pnp, 200ámA, NO Leistungsaufnahme: 8áW Auswerteelektronik: integriert Gehäusematerial: Aluminium, silber (eloxiert) Umgebungstemperatur Betrieb: -10 à +45á°C Schutzart: IP 54 Schutzklasse: III, Betrieb an Schutzkleinspannung Anschluss: Kabel, 4ám
