Ausführung | Kabelumbaustromwandler |
Primärer Bemessungsstrom In | 250 A |
Sekundärer Bemessungsstrom | 5 A |
Sekundäre Bemessungsscheinleistung | 1 VA |
Genauigkeitsklasse | 1 |
Überstrombegrenzungsfaktor | FS 5 |
Geeicht | false |
Mit Berührungsschutz | true |
Öffnungsdurchmesser | 28 mm |
Schnappbefestigung | false |
Mit Kupferschiene | false |
Anzahl der Primäreingänge | 1 |

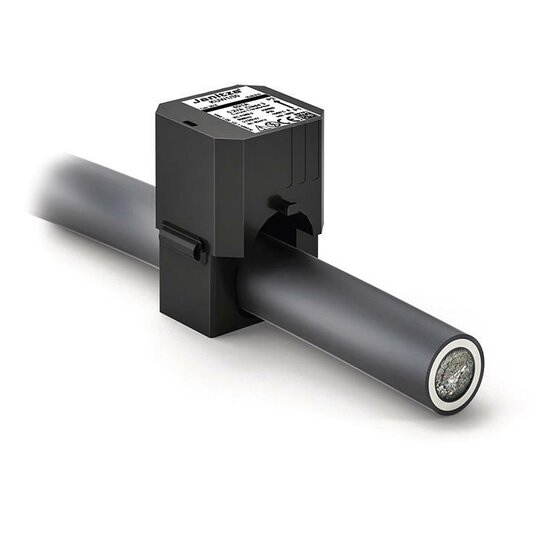

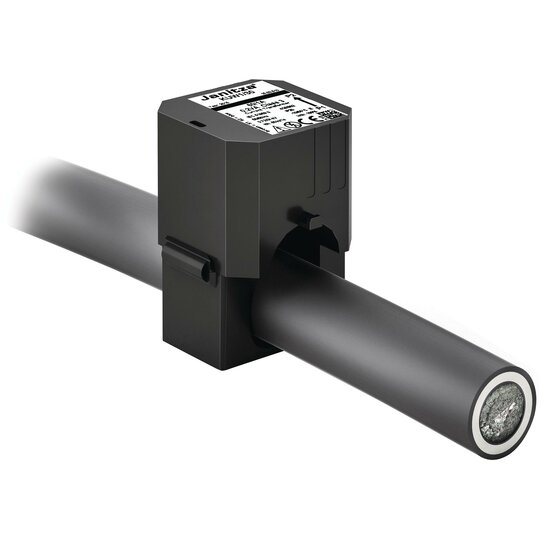

Split Core Current Transformer250/5A, 1VA, class 1Ith 60xIn/1sOverload capacity: 100% permanentProtection class: E (max 120°)Protection type: IP20Environmental temp.: -5 to +40°CPrimary conductor: max. diameter 28mmConnection: L=0,5m cable 1,5mm²
