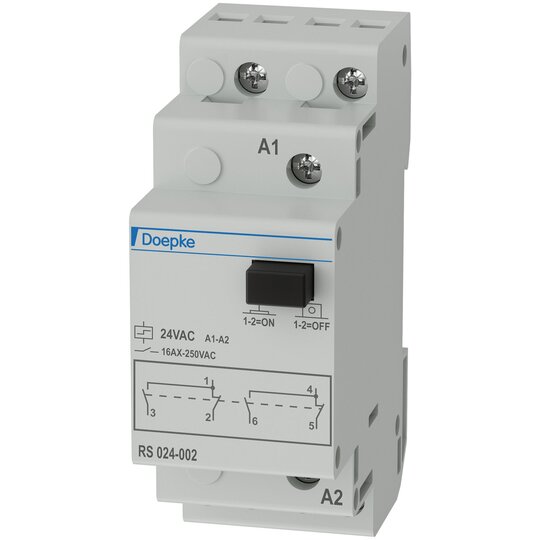

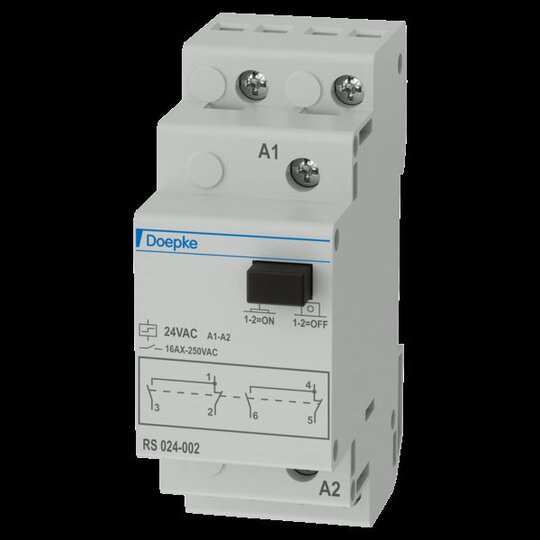

Doepke RS 024-002 Stromstoßschalter 24V AC 2p 16A 2 Wechsler (CO) 09981046

Hersteller-Nr. 09981046 308403
Ihr Nettopreis
Art.-Nr.
3711729
EAN
4014712154803
DEHA.-Nr.
2548007
eClass.-Nr.
27142306
Zolltarif-Nr.
85362010
Verfügbarkeit am Fremdlager
wird ermittelt

Verfügbarkeit beim Hersteller anfragen
Funktion sonstige
Montageart DIN-Schiene
Breite in Teilungseinheiten 2
Einbautiefe 60 mm
Anzahl der Kontakte als Schließer 0
Anzahl der Kontakte als Öffner 0
Anzahl der Kontakte als Wechsler 2
Steuerspannung 1 24 - 24 V
Steuerspannungsart 1 AC
Frequenz der Steuerspannung 1 50 - 50 Hz
Bemessungsschaltstrom 16 A
Versorgungsspannung 24 - 24 V
Spannungsart der Versorgungsspannung AC
Max. Glühlampenlast 1980 W
Max. Leuchtstofflampenlast 1020 VA
Max. Leuchtstofflampenlast (Duo-Schaltung) 1700 VA
Max. Leuchtstofflampenlast (parallel kompensiert) 1105 VA
Handbedienung true

Stromstoßschalter|24V (AC), 16A@250V (AC), 2W |49|RP:464347495320463945435238425343544943204243 Betriebsspannung (AC): 24 V Betriebsfrequenz: 50 Hz Steuereingang: Bemessungsspannung (AC): 24 V Bemessungsstoßspannungsfestigkeit: 2 kV Laststromkreis (Relais): 2 Wechsler Polzahl (gesamt): 2 Bemessungsspannung (AC): 250 V (min. 24 V) Bemessungsstrom AC (typ.): 16 A Bemessungsfrequenz: 50 Hz Bemessungsspannung (DC): min. 24 V Bemessungsisolationsspannung: 500 V max. Bemessungsleistung Glühlampen: 1980 VA max. Bemessungsleistung NV-Halogenlampen: 900 VA max. Bemessungsleistung Leuchtstofflampen kompensiert: 1105 VA max. Bemessungsleistung Leuchtstofflampen unkompensiert: 1020 VA max. Bemessungsleistung Leuchtstofflampen Duoschaltung: 1700 VA Gehäuseart: Verteilereinbaugehäuse Montageart: Tragschiene (35 mm) Schutzart: IP20 (eingebaut: IP40) Abmessungen: B 36 mm (2 TE) × H 90 mm × T 65 mm Bauvorschriften/Normen: EN 60715, EN 60669-1 Fabrikat: Doepke oder gleichwertig Artikelbezeichnung: RS 024-002 Bestellnummer: 09981046 gewähltes Fabrikat/Typ: ___________/___________) Mounting: quick fastening to mounting rail any installation position Application areas: The components offer universal use for control tasks in industrial and building systems as well as in domestic installations. They are especially suitable for switching lighting systems, electric heaters, fans, air conditioning systems, ventilators, heat pumps and glow and gas-discharge lamps. Hints: The duty cycle is max. 1 h. To reach 100% duty cycle, the RD 05 spacer must be used on both sides. Glow lamps switched in parallel from luminaire switches generate reactive currents that, if excessive, can be offset by a capacitor block to prevent coil overheating.

doepke_09981046_dbl_de.pdf

Produktdatenblatt

Download (Stand: 07.09.2025)

doepke_09981015_verlustleistungen_schaltertasterrelais_inf_web_ml.pdf

Technische Information

Download (Stand: 07.09.2025)

doepke_declaration_rohs_ml.pdf

RoHS-Erklärung

Download (Stand: 07.09.2025)
