Nennspannung AC | 230 V |
Höchste Dauerspannung AC | 255 V |
Höchste Dauerspannung DC | 255 V |
Nennlaststrom | 25 A |
Nennableitstoßstrom (8/20) (L-N) | 3 kA |
Gesamtableitstoßstrom (8/20) (L+N-PE) | 8 kA |
Schutzpegel L-N | 1 kV |
Schutzpegel L-PE/N-PE | 1,5 kV |
Polzahl | 4 |
Montageart | auf Basiselement |
Mit Fernmeldekontakt | false |
Signalisierung am Gerät | optisch |
Prüfklasse Typ 3 | true |
Mit Entstörfilter | false |

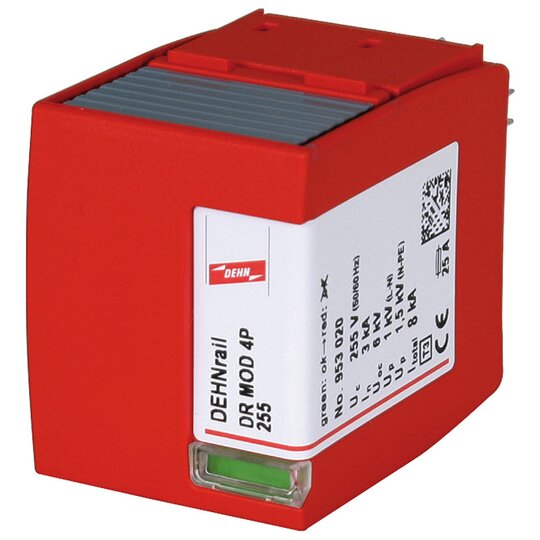

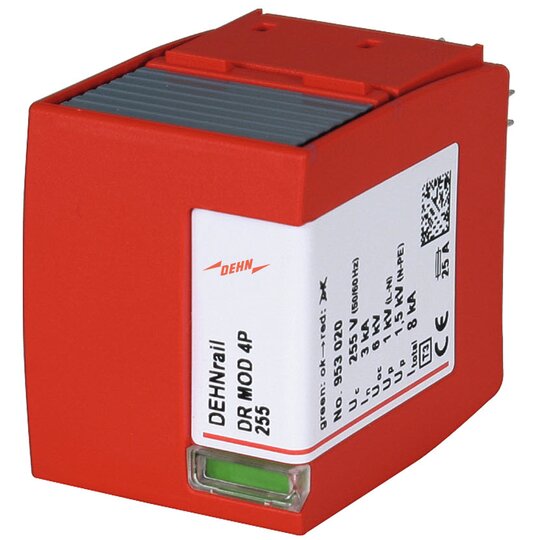

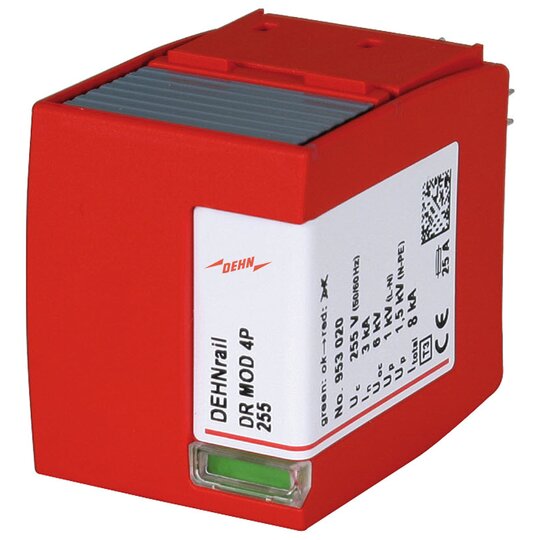

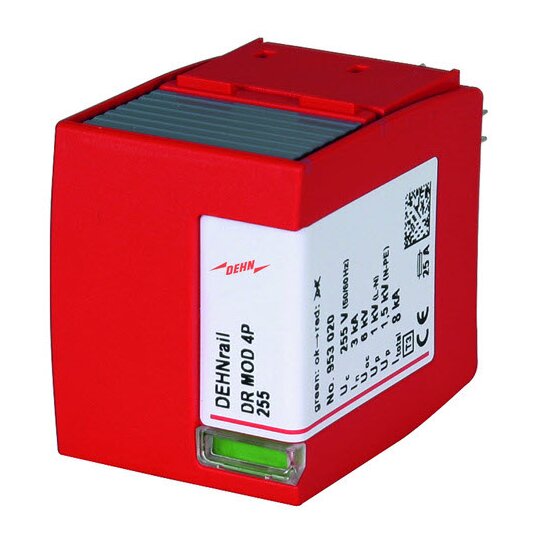

Schutzmodul DEHNrail M 4P DR MOD 4P 255 Steckbares Schutzmodul für DEHNrail M 4P 255 (FM) der Red/Line - Produktfamilie nach EN 61643-11 Höchste Dauerspannung: 255 V ac/dc Gesamtableitstoßstrom: 8 kA Schutzpegel L/N: <, 1 kV Fabrikat: DEHN Typ: DR MOD 4P 255 Art.-Nr.: 953020 oder gleichwertig.
3000155.pdfMontageanleitung
Download
(Stand: 16.04.2024)
|
10177805_10177818.pdfProduktdatenblatt
Download
(Stand: 16.04.2024)
|
10177805_28333205.pdfMaßzeichnung
Download
(Stand: 16.04.2024)
|
10177805_28333204.pdfSchaltbild
Download
(Stand: 16.04.2024)
|
