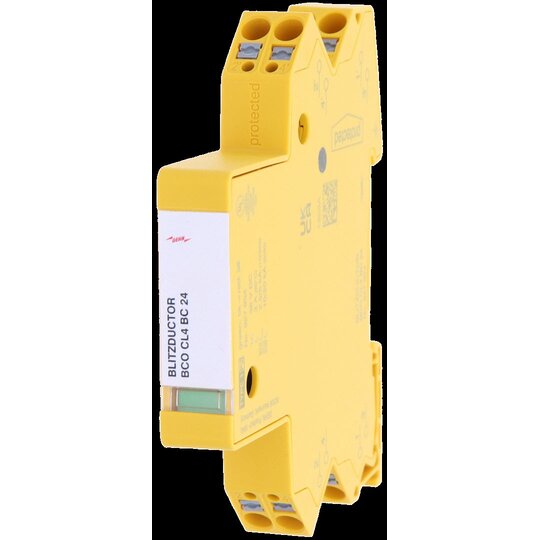

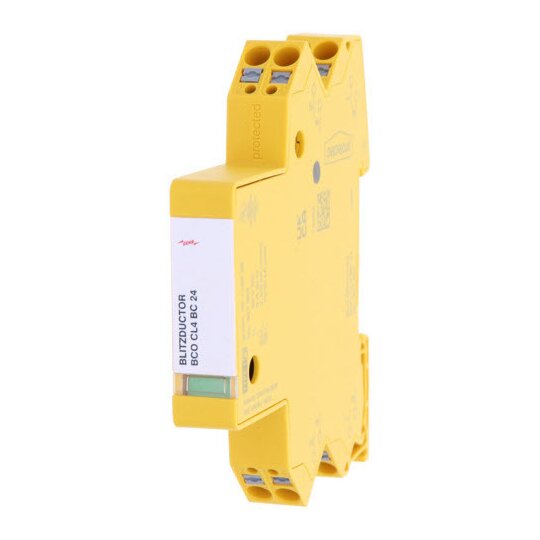

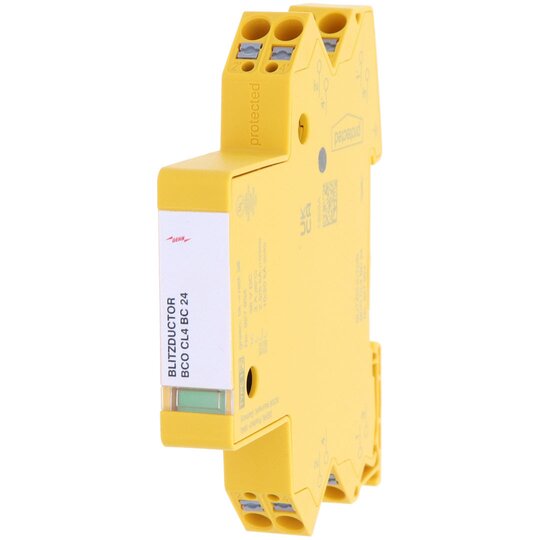

Dehn 927954 BCO CL4 BC 24 Kompakter Kombi-Ableiter f.Messkreise

Ihr Nettopreis
Art.-Nr.
2032859
EAN
4013364485730
Hersteller-Nr.
927954
DEHA.-Nr.
7022216
eClass.-Nr.
27130811
Zolltarif-Nr.
85363010
Nennspannung DC 24.0 - 24.0 V
Höchste Dauerspannung AC 25,4 V
Höchste Dauerspannung DC 36 V
BlitzstoŽƒstrom (10/350 s)s) 5 kA
Nennableitstoßstrom (8/20) 20 kA
Nennlaststrom 3 A
Schutzpegel Ader/Erde 800 V
Grenzfrequenz 2 MHz
Montageart Hutschiene TH35
Anschluss 1 Push-in-Klemme
Ableiterüberwachung true
Mit Fernmeldekontakt false
Explosionsgeprüfte Ausführung false
Trennmöglichkeit des Signalkreises false
Anzahl der Leiter (ohne Erde) 4
Erdung über Hutschiene
Baubreite 12 mm
Schutzart (IP) IP20

Platzsparender, kompakter Kombiableiter in 12 mm Baubreite und Push-In Anschlusstechnik mit Statusanzeige zum Schutz von erdfreien 4-Leiter-Messkreisen für informationstechnische Systeme und MSR-Technik.nd MSR Kreise geprüft nach EN/IEC 61643-21 und energetisch koordiniert nach IEC 61643-22 Ableiterklasse Type 1 / P2 Impulskategorie: D1, C1, C2, C3, B2 Statusanzeige Höchste Dauerspannung: 36,0 V DC / 25,4 V AC Nennstrom bei 80°C: 3 A Serienimpedanz pro Ader: 0 Ohm C2 Nennableitstoßstrom pro Ader (8/20): 10 kA C2 Nennableitstoßstrom gesamt (8/20): 20 kA D1 Blitzstoßstrom (10/350) pro Ader: 2,5 kA D1 Blitzstoßstrom (10/350) gesamt: 5 kA Leitungsanschluss: Push-In Baubreite 12 mm Fabrikat: DEHN Typ: BCO CL4 BC 24 Art.-Nr.: 927954 oder gleichwertig.

12348186_34962284.pdf

Schaltbild

Download (Stand: 24.02.2025)

12348186_34962285.pdf

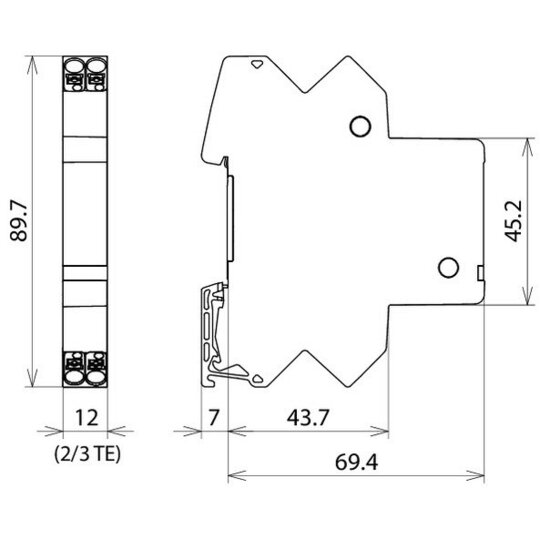

Maßzeichnung

Download (Stand: 24.02.2025)

3020388.pdf

Montageanleitung

Download (Stand: 24.02.2025)

12348186_12348263.pdf

Produktdatenblatt

Download (Stand: 24.02.2025)

Deeplink Produktseite

Download (Stand: 24.02.2025)

REACH-Erklärung

Download (Stand: 24.02.2025)
