Ausführung | SCHUKO |
Werkstoff | Kunststoff |
Werkstoffgüte | Thermoplast |
Halogenfrei | true |
Flanschmaß | 50x50 mm |
Mit Klappdeckel | true |
Schutzart (IP) | IP54 |
Steckrichtung | gerade |
Anschlusstechnik | Schraubklemme |
Farbe | grau |
RAL-Nummer | 7035 |
Polzahl | 3 |
Nennstrom | 16 A |
Nennspannung | 250 V |

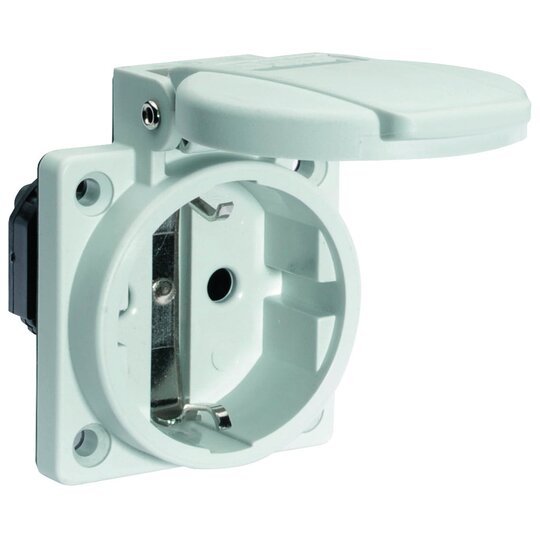

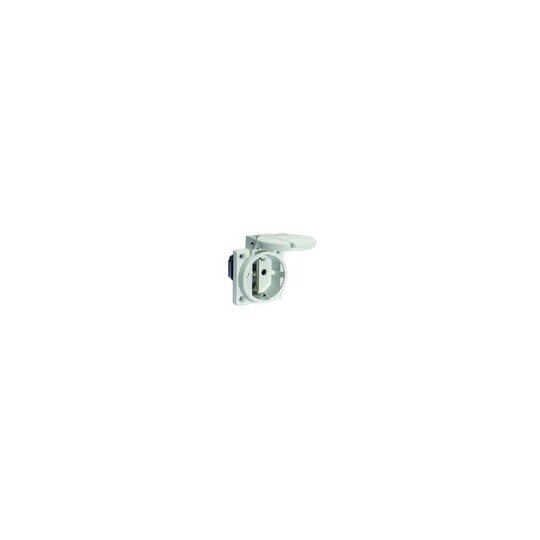

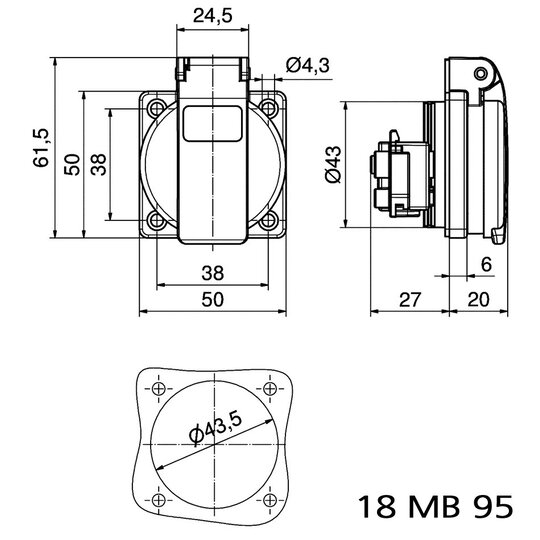

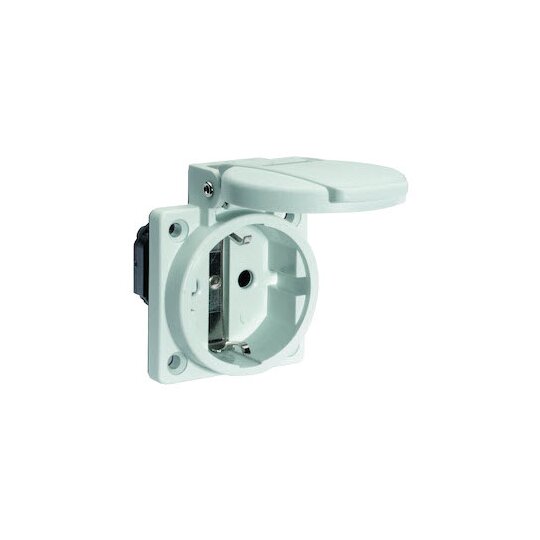

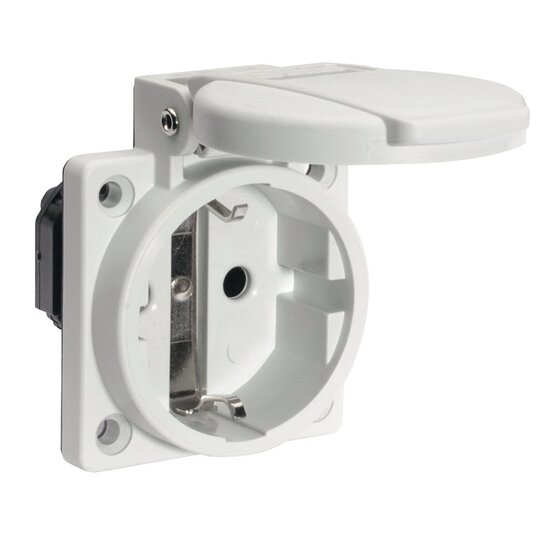

BALS-Art.-Nr: 71095 EAN: 4024941209458 Schutzkontakt-Anbausteckdose 16A 3p (2P+PE) 250V (250V~) IP54 Frequenz: AC Technische Kennfarbe: grau RAL 7035 Kontaktträger/Kontakte: der Kontaktträger ist aus Polyamid, die Kontakte sind Messing vernickelt Maximaler Leiterquerschnitt: 4,0 qmm Gehäusematerial: Kunststoff Anschlusstechnik: Kopfschraubenklemme Kabeleinführung: sonstige Gerätefarbe: Klappdeckel grau RAL 7035, Gehäuse grau RAL 7035 Gerätehöhe: 61,5 mm, Gerätebreite: 50 mm, Gerätetiefe: 47,5 mm Flanschmaß vertikal: 50 mm, Flanschmaß horizontal: 50 mm Bohrlochabstand vertikal: 38 mm, Bohrlochabstand horizontal: 38 mm Halogenfrei: ja Phasenwender: nein Militärausführung: nein Sonstige technische Eigenschaften: Der Anschluss ist rückwärtig, mit deutschem System, Zur Verwendung in ortsfesten Verteilersystemen
