IEC-Stromstärke | 16 A |
Spannung nach EN 60309-2 | 20-25 V / 40-50 V (100-200 Hz) grün |
Polzahl | 3 |
Uhrzeit-Stellung | 4 h |
Kennfarbe | grün |
RAL-Nummer | 6002 |
Schutzart (IP) | IP44 |
Anschlusstechnik | Schraubklemme |
Steckrichtung | gerade |
Kabeleinführung | sonstige |
Werkstoff | Kunststoff |
Kontaktmaterial | CuZn |
Oberflächenbehandlung der Kontakte | vernickelt |
Militärausführung | false |

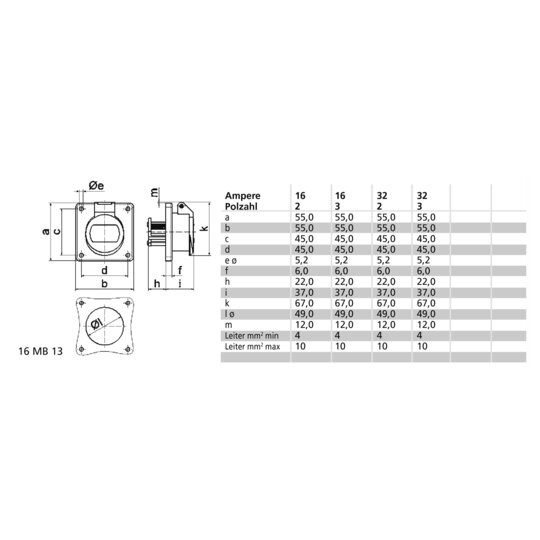

Flanschmaß vertikal | 55 mm |
Bohrlochabstand vertikal | 45 mm |
Flanschmaß horizontal | 55 mm |
Bohrlochabstand horizontal | 45 mm |

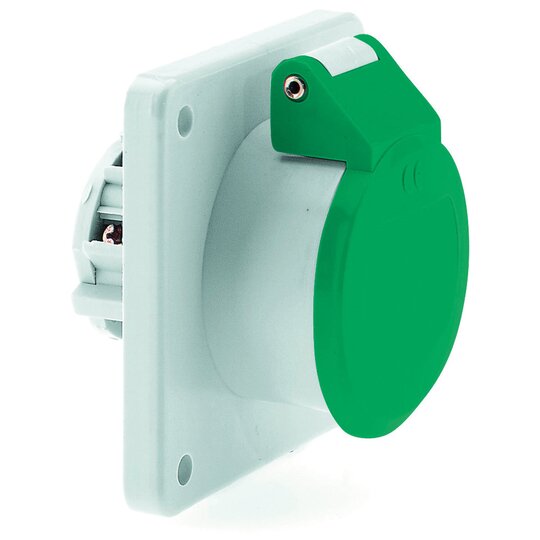

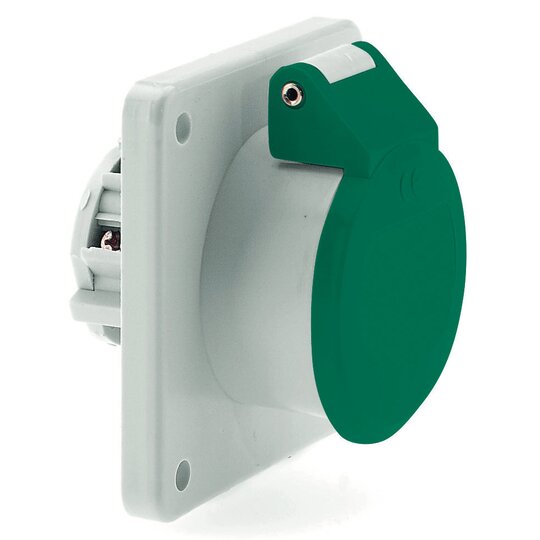

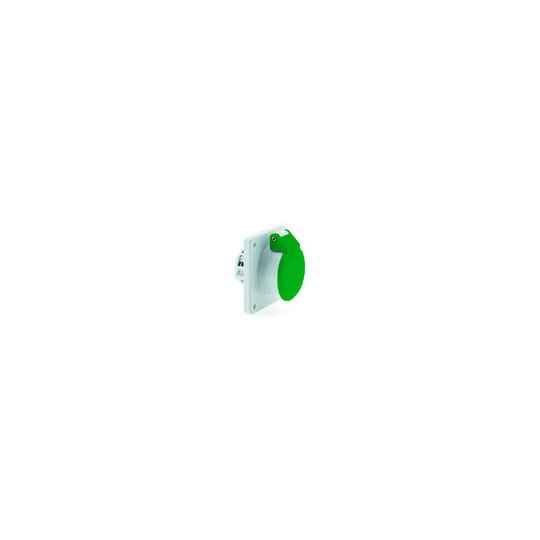

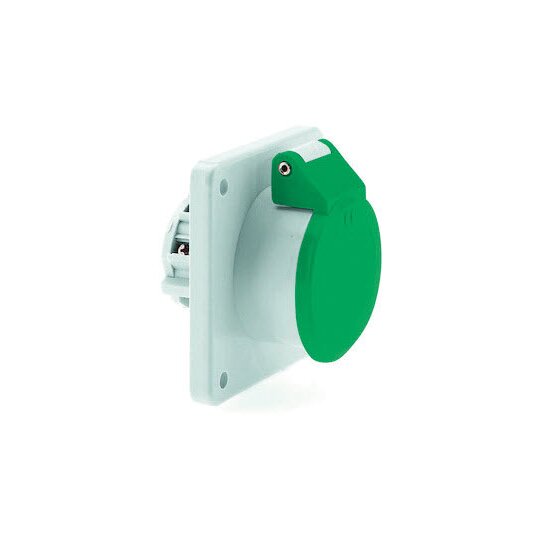

Kleinspannungs-Anbausteckdose gerade 16A 3p (3P) <50V grün 100-200Hz (20 bis 25 und 40 bis 50V) 4h IP44 Frequenz: 100 - 200Hz Technische Kennfarbe: grün RAL 6002 Kontaktträger/Kontakte: der Kontaktträger ist aus Polyamid, die Kontakte sind Messing vernickelt Maximaler Leiterquerschnitt: 10,0 qmm Gehäusematerial: Polyamid Anschlusstechnik: mit Schraubklemme Kabeleinführung: sonstige Gerätefarbe: Klappdeckel grün RAL 6002, Gehäuse grau RAL 7035 Gerätehöhe: 67 mm, Gerätebreite: 55 mm, Gerätetiefe: 59 mm Flanschmaß vertikal: 55 mm, Flanschmaß horizontal: 55 mm Bohrlochabstand vertikal: 45 mm, Bohrlochabstand horizontal: 45 mm
