IEC-Stromstärke | 16 A |
Spannung nach EN 60309-2 | 230 V (50+60 Hz) blau |
Polzahl | 3 |
Uhrzeit-Stellung | 6 h |
Kennfarbe | blau |
RAL-Nummer | 5015 |
Schutzart (IP) | IP44 |
Anschlusstechnik | schraublose Klemme |
Bauform | sonstige |
Phasenwender | false |
Steckrichtung | abgewinkelt |
Werkstoff | Kunststoff |
Militärausführung | false |

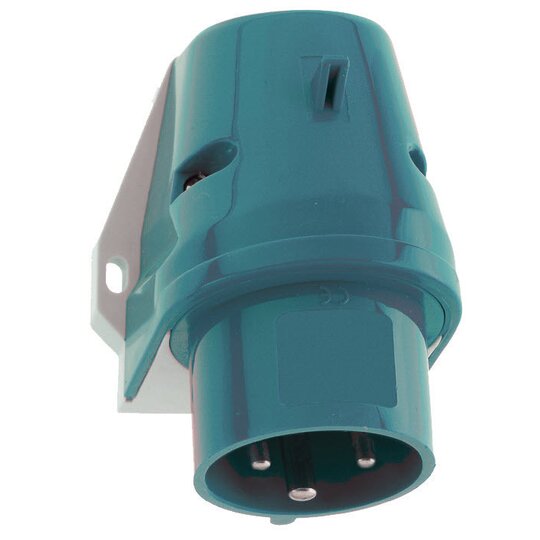

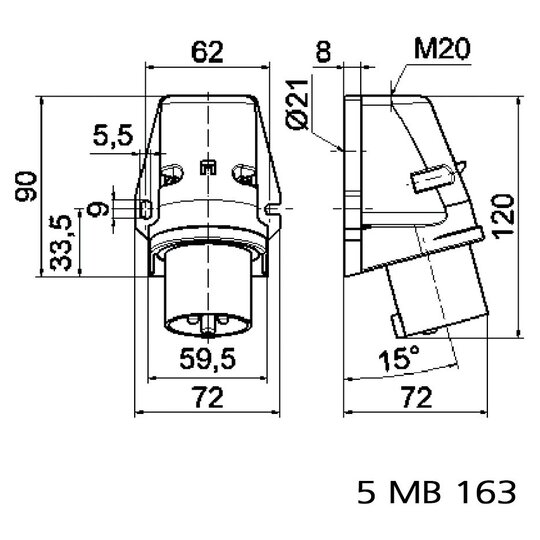

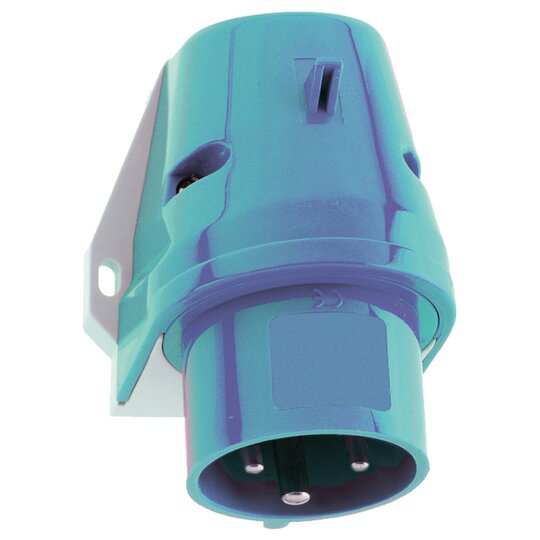

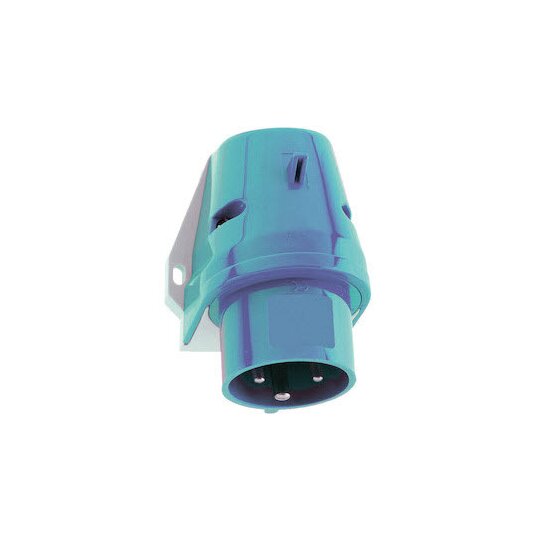

Wandgerätestecker QUICK-CONNECT 16A 3p (2P+PE) 230V (200 - 250V~) 6h IP44 Frequenz: 50/60Hz Technische Kennfarbe: blau RAL 5015 Gehäusegröße: 90x72 mm (HxB) Kontaktträger/Kontakte: Die Kontakte sind Messing blank, Der Kontaktträger ist aus Polyamid Maximaler Leiterquerschnitt: 2,5 qmm Gehäusematerial: Polyamid Anschlusstechnik: schraublose Federklemmtechnik mit Käfigzugfederklemmen Kabeleinführung: 1xM20 oben Gerätefarbe: Gehäuseunterteil grau RAL 7035, Kragen blau RAL 5015, Gehäuseoberteil blau RAL 5015 Gerätehöhe: 121 mm, Gerätebreite: 72 mm, Gerätetiefe: 72 mm Sonstige technische Eigenschaften: Die Leitungseinführung ist einmal oben offen und einmal im Boden verschlossenen: Die Leitungseinführung ist einmal oben offen und einmal im Boden verschlossen
