IEC-Stromstärke | 16 A |
Spannung nach EN 60309-2 | 230 V (50+60 Hz) blau |
Polzahl | 3 |
Uhrzeit-Stellung | 6 h |
Kennfarbe | blau |
RAL-Nummer | 5015 |
Schutzart (IP) | IP44 |
Anschlusstechnik | Schraubklemme |
Steckrichtung | gerade |
Kabeleinführung | sonstige |
Werkstoff | Kunststoff |
Kontaktmaterial | CuZn |
Oberflächenbehandlung der Kontakte | vernickelt |
Militärausführung | false |
Flanschmaß vertikal | 90 mm |
Bohrlochabstand vertikal | 60 mm |
Flanschmaß horizontal | 90 mm |
Bohrlochabstand horizontal | 60 mm |

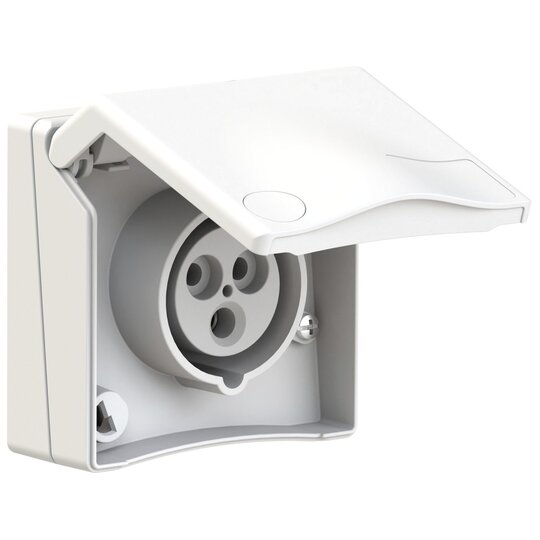

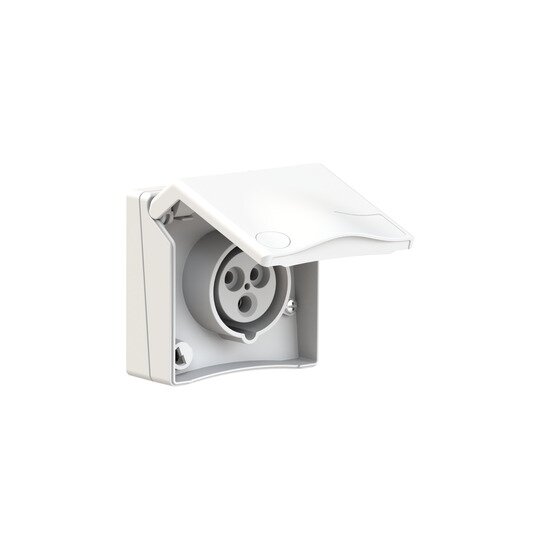

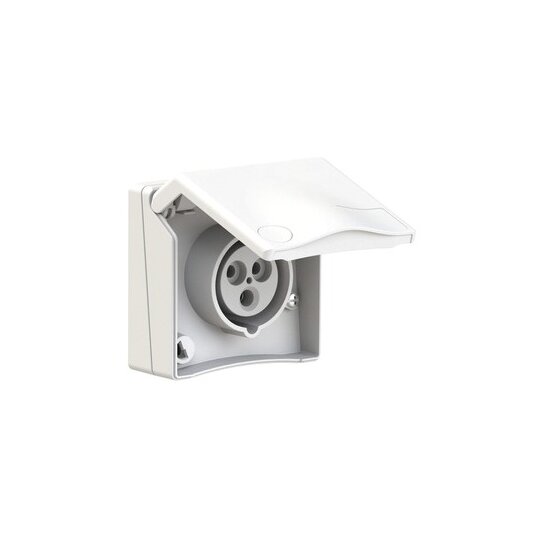

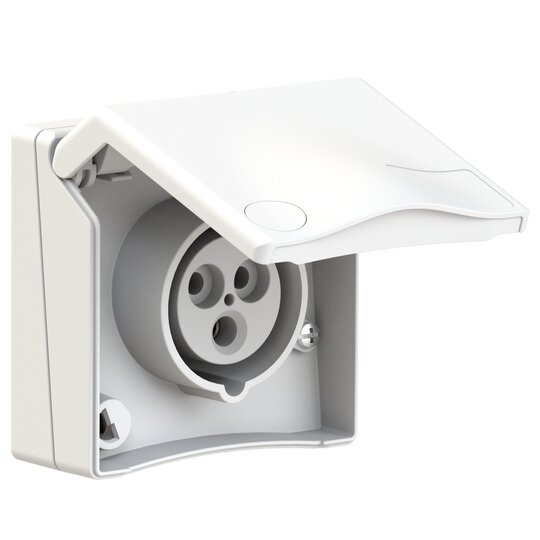

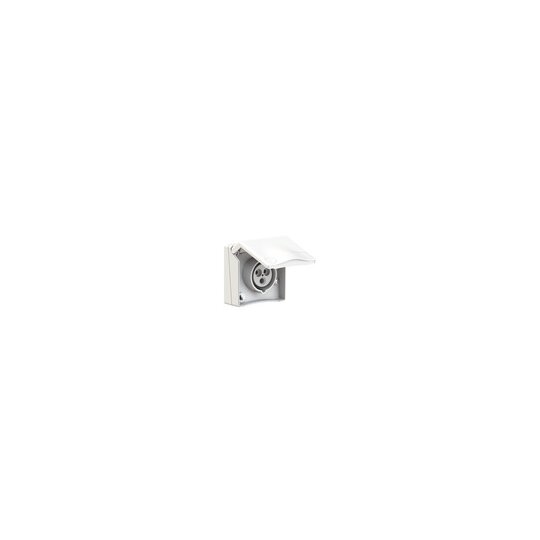

Anbausteckdose gerade 16A 3p (2P+PE) 230V (200 - 250V~) 6h IP44 Frequenz: 50/60Hz Technische Kennfarbe: blau RAL 5015 Kontaktträger/Kontakte: die Kontakte sind Messing vernickelt Maximaler Leiterquerschnitt: 4,0 qmm Gehäusematerial: ABS + Polycarbonat Anschlusstechnik: mit Schraubklemme Kabeleinführung: sonstige Gerätefarbe: weiß ähnlich RAL 9016 Gerätehöhe: 90 mm, Gerätebreite: 90 mm, Gerätetiefe: 71 mm Flanschmaß vertikal: 90 mm, Flanschmaß horizontal: 90 mm Bohrlochabstand vertikal: 60 mm, Bohrlochabstand horizontal: 60 mm Sonstige technische Eigenschaften: Architekturprogramm TH, Geeignet für den Einbau im Kabelkanal, Klappdeckel mit Beschriftungsfeld (Optional: Absperrschloss)hriftungsfeld (Optional: Absperrschloss)
